VISITOR LX-1 Printed Builder Kit

The printed half of VISITOR LX-1: shell, chassis, mounts, wheels and drivetrain, ready for electronics you supply.

$199

Plus $30 US shipping at checkout. Ships within the United States.

Get the kit

Printed parts, and the parts that turn

This is the mechanical half of VISITOR LX-1, the body and the drivetrain, not the complete robot. Every part we print for the Builders Edition is here: the shell, the chassis, and the mounts for the cooling fan, distance sensor and NoIR camera, in the same PLA and the same purple, printed on the machines that print ours.

It rolls, too. Two N20 geared motors and their brackets, a pair of custom wheels with TPU tread, the AA battery pack and the ball caster are all in the box, so what arrives is a finished chassis waiting on electronics rather than a bag of panels.

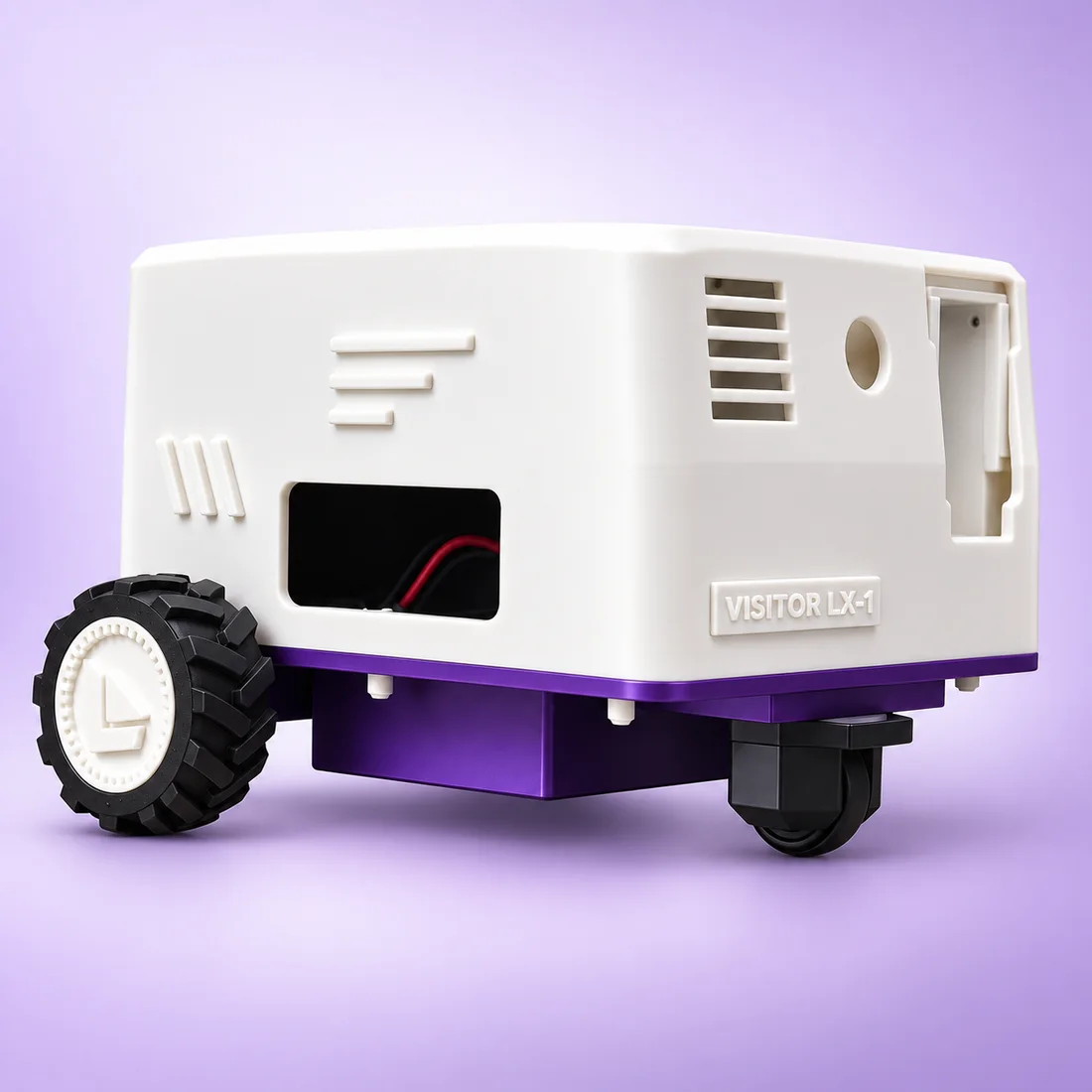

The Printed Builder Kit assembled: printed shell, purple chassis, a treaded wheel and the ball caster, lit on a pale lilac backdrop

In the box:

  • 3D-printed VISITOR LX-1 shell
  • 3D-printed chassis
  • Two custom wheels with TPU tread
  • Two N20 geared drive motors
  • Two N20 motor brackets
  • AA battery pack
  • Ball caster
  • Printed cooling fan mount
  • Printed distance sensor mount
  • Printed NoIR camera mount
  • No hardware or electronics included
  • No screws or fasteners included

Printed in PLA on the same machines that print ours. Colours and layer finish may vary slightly between runs.

Wheels with real grip

The wheels are printed in two materials: a rigid hub carrying the Lumalien mark, and a flexible TPU tread printed around it. Rubber where a robot needs rubber, so it climbs a rug instead of spinning on it. Each one presses onto an N20 geared motor that comes with the kit, bracket included.

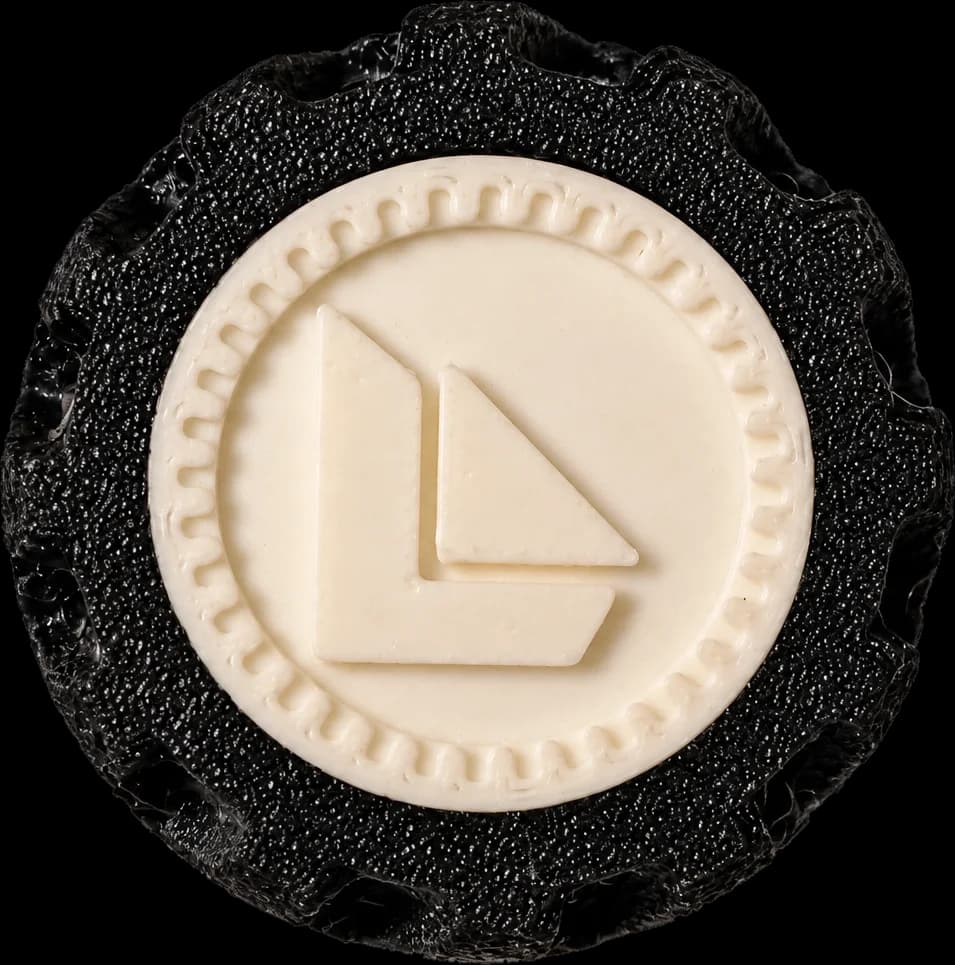

A VISITOR LX-1 wheel head-on, black TPU tread around a printed hub embossed with the Lumalien mark

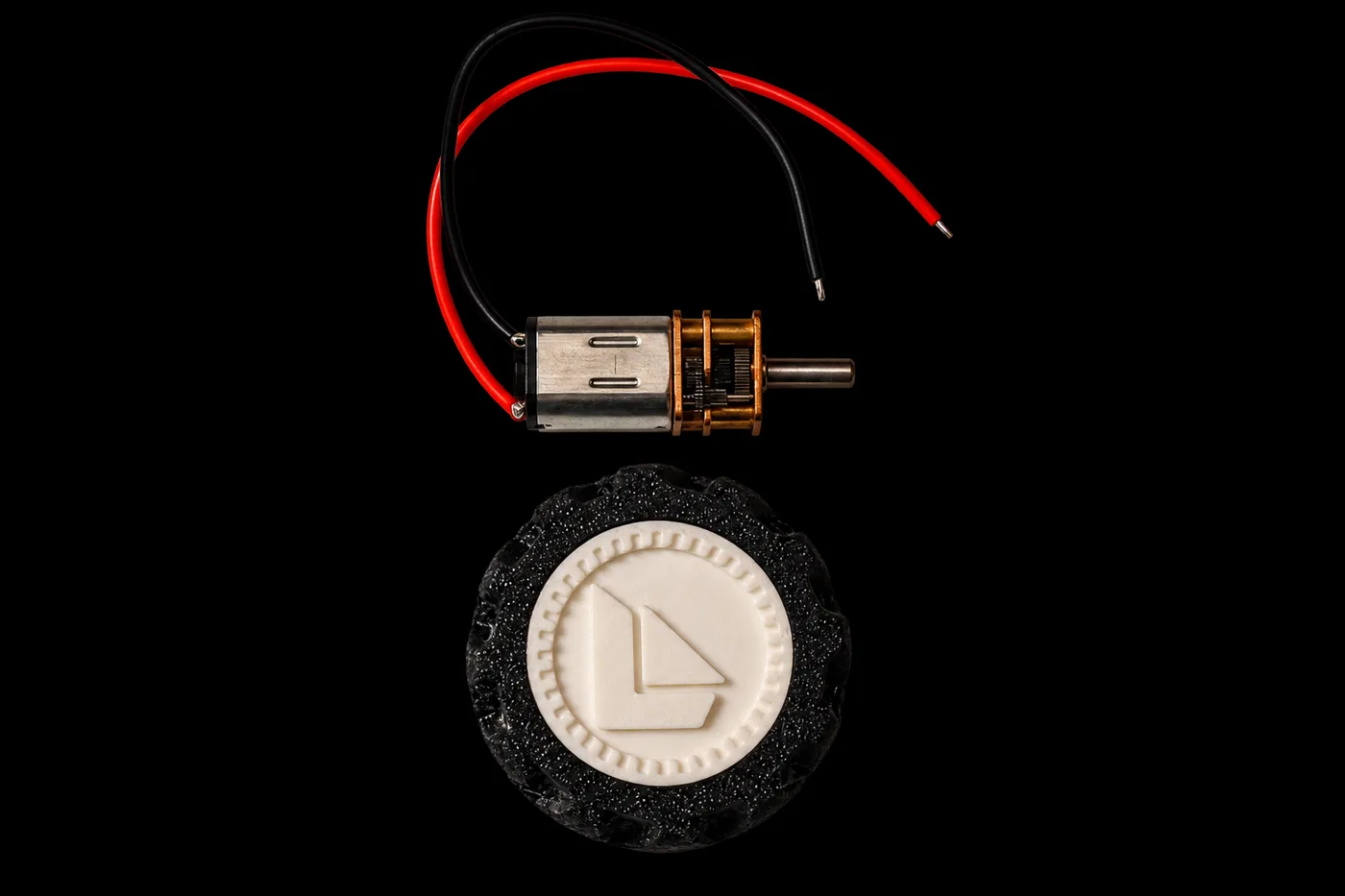

An N20 geared motor with its red and black leads, above one of the treaded wheels

Bring your own electronics

This is the body, not the robot. No Raspberry Pi, no motor controller, no camera, sensor or fan, and no screws. The mounts are cut for the parts the Builders Edition uses, so you can source them yourself, or buy the complete $699 robot and skip the shopping list entirely.

Not in the box

Not included:Raspberry Pi 5 and the compute stack
Not included:Motor controller, wiring and connectors
Not included:NoIR camera, distance sensor and cooling fan
Not included:Rechargeable battery and UPS power system
Not included:Screws and fasteners
See the complete robot, $699

Up close

The chassis with its drivetrain fitted, and the three printed mounts that carry the fan, the distance sensor and the NoIR camera. Photographs of the real parts. Nothing here is a render.

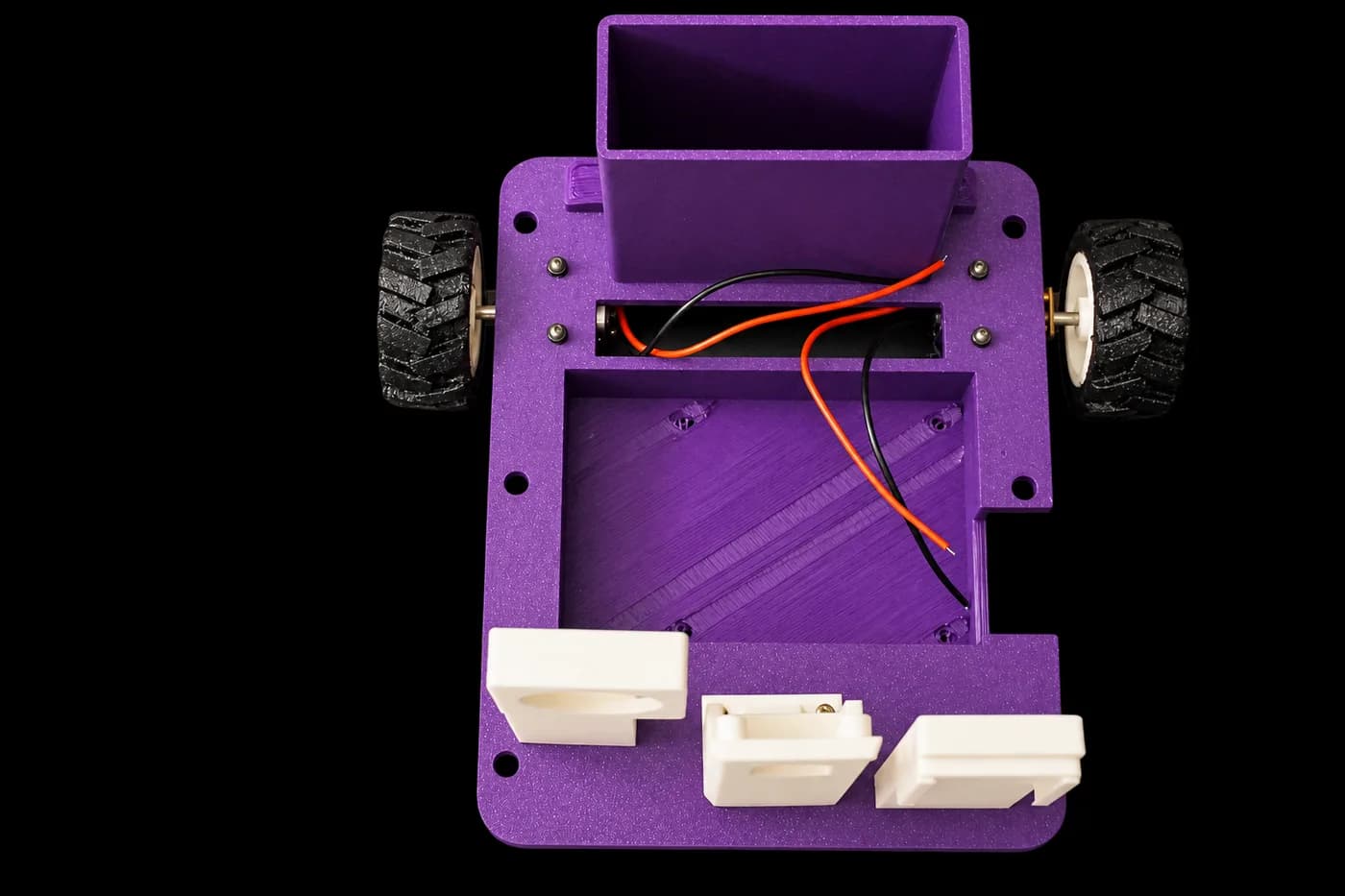

The printed chassis from above, wheels and motors fitted, with the battery bay and the three printed mounts laid out below it

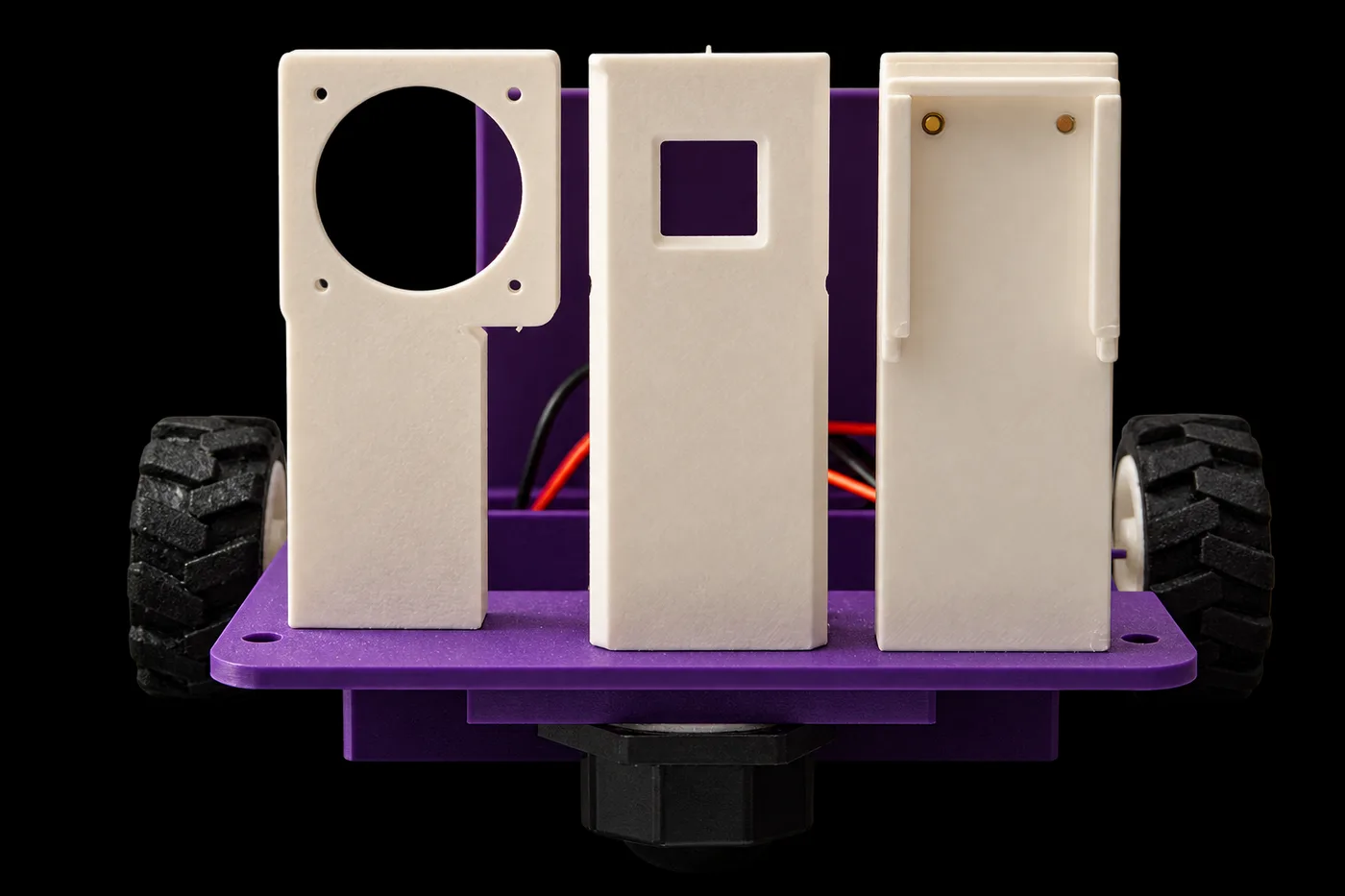

The three printed mounts standing on the chassis: the fan mount, the distance sensor mount, and the NoIR camera mount

Start with the body.

If you already own a Pi and a drawer full of parts, this is the half that is hard to make at home. Print-quality shell, a chassis that fits it, and a drivetrain that works on the first try. $30 US shipping is added at checkout, and the kit ships within the United States.
